| 鼓形齿式联轴器 >> GⅡCLD型鼓形齿式联轴
|

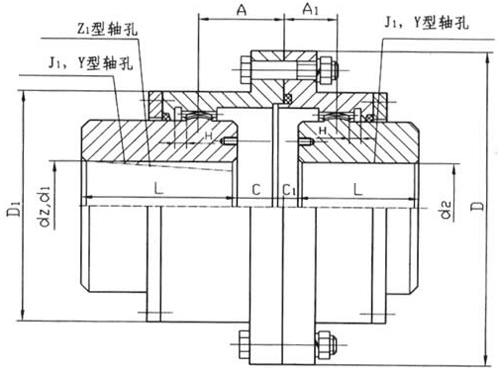

GCLD、GIICLD型鼓形齿式联轴器基本参数和主要尺寸 mm
|
型号 |
公称转矩
Tn
N·m |
轴孔直径
|
轴孔长度 |
D |
D1 |
C |
C1 |
H |
A |
A1 |
质量 kg |
|
Y,J1,Z1 |
|
GCLD |
GIICLD |
d1,d2,dz |
L |
GCLD |
GIICLD |
|
GCLD1 |
GIICLD1 |
1000 |
22-56 |
38-112 |
127 |
95 |
27.0 |
33 |
6.0 |
2.0 |
43.0 |
22.0 |
9.6 |
|
GCLD2 |
GIICLD2 |
1600 |
38-65 |
60-142 |
149 |
116 |
26.5 |
33 |
6.5 |
2.0 |
44.5 |
24.5 |
16.4 |
|
GCLD3 |
GIICLD3 |
2800 |
40-75 |
84-142 |
167 |
134 |
33.0 |
40 |
7.0 |
2.5 |
53.5 |
27.5 |
22.4 |
|
GCLD4 |
GIICLD4 |
4500 |
45-90 |
84-172 |
187 |
153 |
33.5 |
41 |
7.5 |
2.5 |
54.0 |
28.0 |
35.6 |
|
GCLD5 |
GIICLD5 |
6300 |
50-105 |
84-212 |
204 |
170 |
37.5 |
45 |
7.5 |
2.5 |
60.0 |
30.0 |
53.9 |
|
GCLD6 |
GIICLD6 |
9000 |
55-115 |
84-212 |
230 |
186 |
43.5 |
52 |
8.5 |
3.0 |
68.5 |
33.5 |
67.5 |
|
GCLD7 |
GIICLD7 |
14000 |
60-135 |
107-252 |
256 |
212 |
48.0 |
57 |
9.0 |
3.0 |
73.5 |
34.5 |
106.7 |
|
GCLD8 |
GIICLD8 |
20000 |
65-150 |
107-252 |
287 |
239 |
40.5 |
49 |
8.5 |
3.5 |
69.0 |
39.0 |
123.0 |
|
GCLD9 |
GIICLD9 |
31500 |
70-175 |
107-302 |
325 |
276 |
49.5 |
59 |
9.5 |
3.5 |
40.5 |
80.5 |
212.0 |
|
GCLD10 |
GIICLD10 |
45000 |
75-200 |
107-352 |
362 |
313 |
65.0 |
76 |
11.0 |
4.0 |
98.5 |
44.5 |
319.0 |
|
